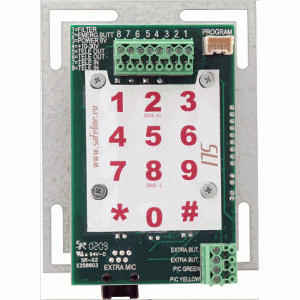

SAFELINE SL1

SafeLine SL1 includes all benefits of the SafeLine MX series. The compact and adaptive design has been completed with further flexibility through connections for an external emergency button and external pictograms. This also enables connection of a voice station for car top and lift pit, fulfilling all requirements for an emergency phone in accordance with EN81-28.

The standard version of SL1 is constructed for installation behind the car operating panel (COP).
If an external pictogram isn’t used, the unit can be ordered with front plate and pictogram engraving for flush or surface mounted installation (variant models SL1-Rec and SL1-SM), or with pictogram engraving and emergency button for flush mounted installation (SL1-RecB), in order to comply with EN81-70.

Advantages with SL1:

• Identification through protocols:
  • P100
  • CPC
  • Q23
• Alternative identification:
  • Caller-ID
  • Pre-recorded voice message
• Programming options:
  • Computer, through free software SafeLine Pro (recommended)
  • Integrated keyboard
  • External phone handset
  • Remote programming through the unit SafeLine ProLink
• Identification messages can be recorded on site
• Up to nine units can share the same phone line
• GSM as an option through the GL series
• Test alarms on configurable intervals
• Possibility to connect extra voice stations through RJ12 (LT-Stat series)
• Extra outputs for pictograms
• Extra input for emergency button
• Volume adjustment through the keyboard
