SAFELINE MX3

SafeLine MX3 is our smallest lift emergency telephone to date; despite its extremely small size it still

include intelligent functions such as complete self-test & external voice station. Furthermore it can

automatically relay technical alarms to the alarm receiver. The MX3 sets a new standard for ultra-compact

and cost effective emergency telephone systems.

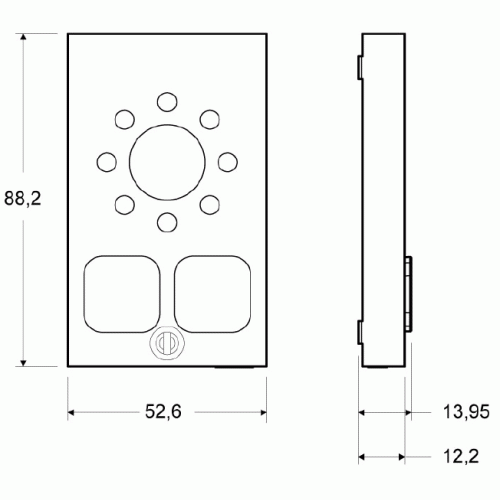

With a thickness of only 12.5 mm SafeLine MX3 is probably the world's smallest EN81-28 & EN81-70

compatible lift emergency telephone. SafeLine MX3 has built-in background lit pictograms as well

as giving the possibility to control external pictograms. It is also possible to connect an extra voice

station from the LT-Stat series. External connections include pictograms, alarm button (N/O) and a

hearing loop.

The MX3 uses a 10-30v supply separate from the telephone line. This makes the quality of the MX3

unaffected by reductions in line quality.  Test alarms can be sent to a separate telephone number on

a configurable interval.
Change from telephone line to GSM in minutes by using GL1, GL2 or GL6. No reconfiguration needed.

Up to nine SafeLine MX3 can share the same telephone line and still be selectively called by

configuring individual unit ID numbers 1-9.

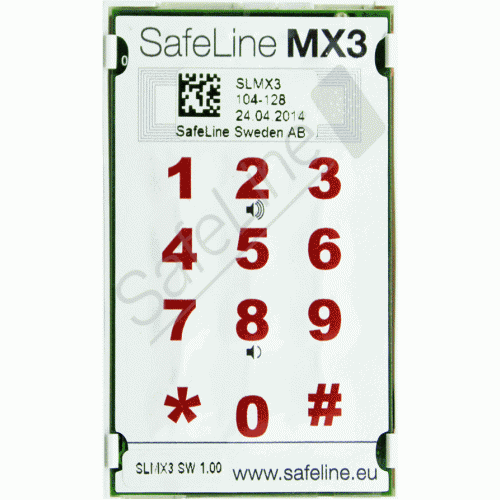

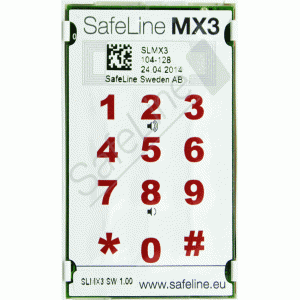

SafeLine MX3 comes with five different solutions for configuration: On site with the built-in keyboard,

Remote configuration with a mobile phone, Connected to a computer running SafeLine Pro software,

Remote configuration with standard analogue telephone or Remote configuration with SafeLine ProLink

connected to a computer running SafeLine Pro software.

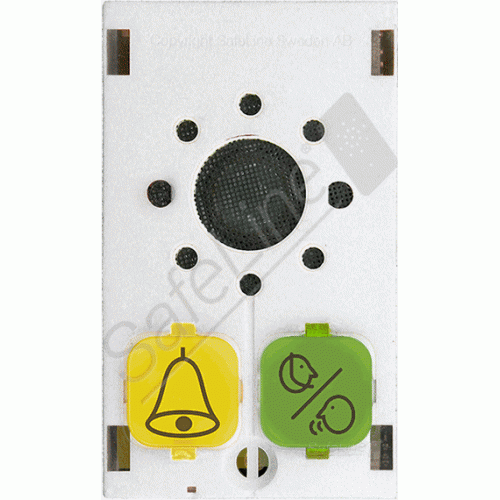

The COP model of SafeLine MX3 is suited for installation behind the car operating panel by using

the included adhesive tape. The unit has two background lit pictograms (yellow/green) for use in the

car panel.
